Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power

Place of Origin : Guangdong, China

Brand Name : HYD

MOQ : 1

Weight : 3200 kg

Voltage : 380 V

Power : 27 kW

Wire Size : Low-carbon Steel: 2-6mm, High-carbon Steel: 1-4mm

Servo Motors : 12 axes

Max Wire Speed : 100 m/min

Wire Feed Roller : 4 Pairs

Maximum Error : ±0.15 (Length)

Control System : 1SET

Decoiler : 300KG

Reducer : 10PCS

Servo Motor Power : 21.5KW

Motor Brand : Sanyo

Shortest Angel Length : 4 Times Wire Diameter

Machine Size : L1100*W1450*H2000MM

Contact Now

Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Products Description
HYD-42T-12A/13A
Multi-function Computer Spring Machine
Technical specification
Model
HYD-42T-12A
HYD-42T-13A
Wire Size
Low-carbon Steel2-6mm
High-carbon Steel:1 -4mm
Low-carbonSteel:2-6mm
High-carbonSteel:1-4mm
Servo Motors
12 axes
13 axes
Lead Rail
tineraries 120mm
tineraries 120mm
Wire Feed Roller
4 Pairs
4 Pairs
Maximum error
±0.15(Length)
±0.15(Length)
Max Wire Feed Speed
100m/min
100m/min
Control System
1SET
1SET
Decoiler
300KG
500KG
Reducer
10PCS
11PCS
Servo Motor Power
21.5KW
27KW
Motor Brand
Sanyo
Sanyo
Shortest Angel Length
4 Times Wire Diameter
4 Times Wire Diameter
Power Supply
380V±10%V50Hz
380V±10%V50Hz
Machine Dimension
2500KG
3200KG
Machine Size
L1100*W1450*H2000MM
L2100*W2050*H2000MM
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power

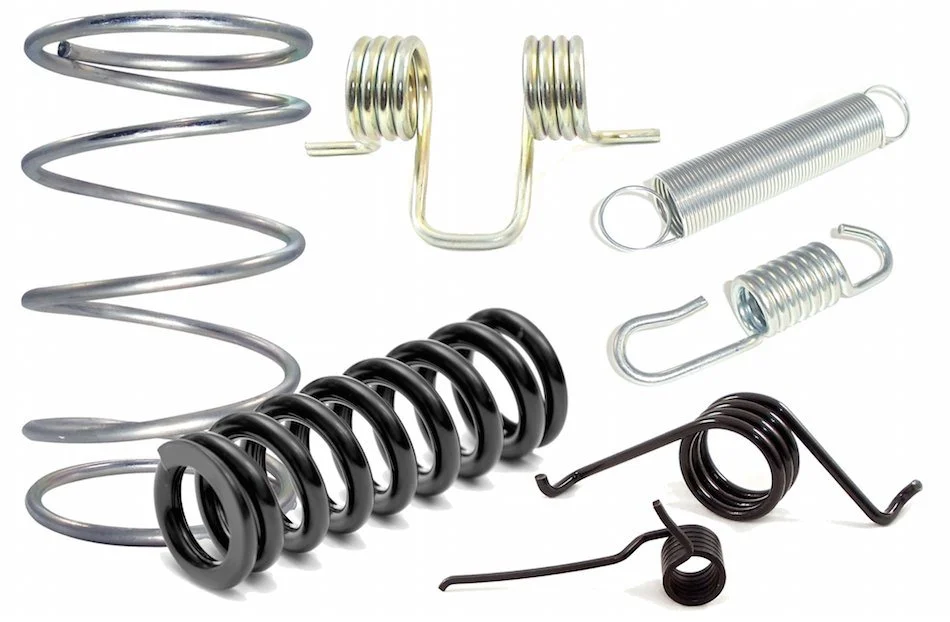

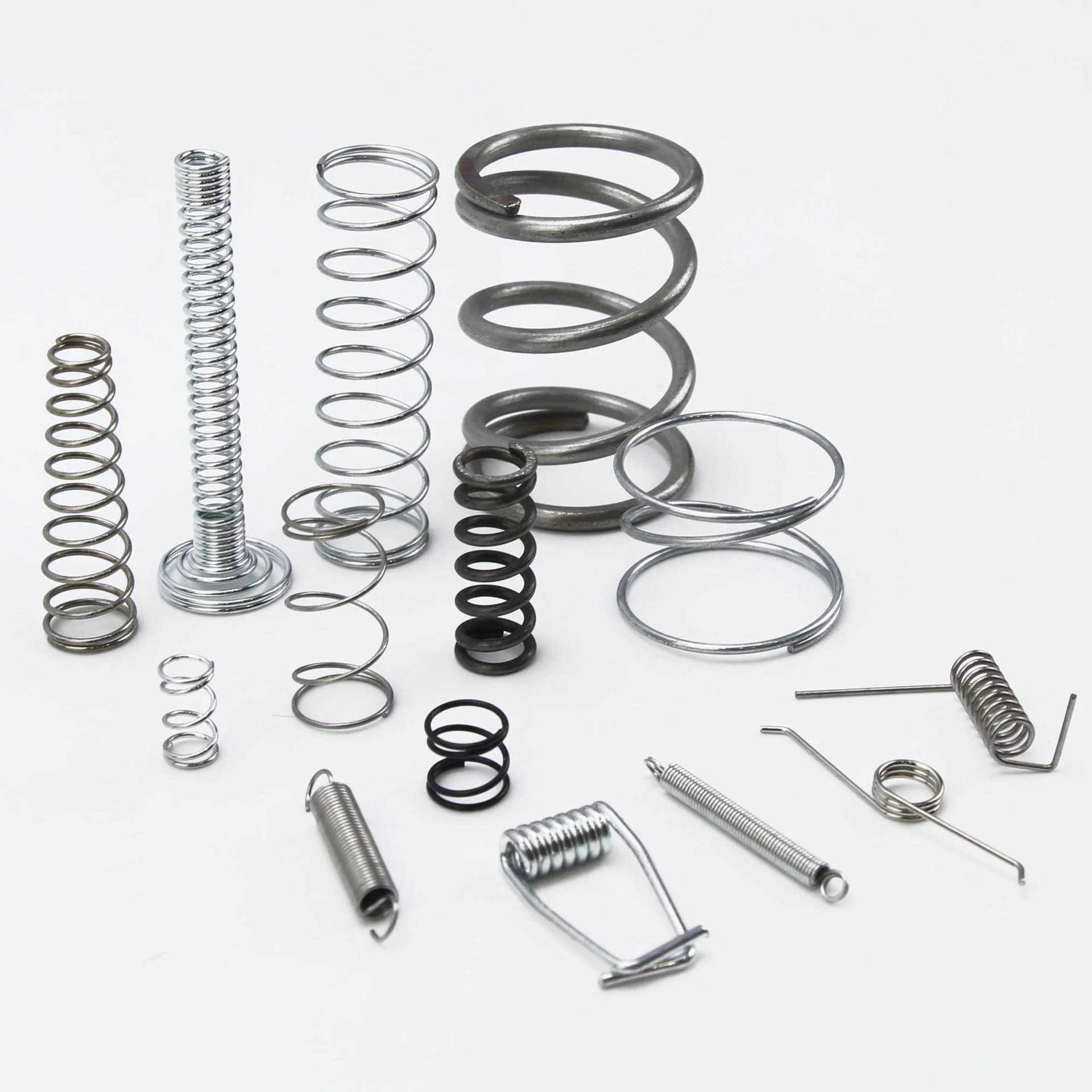

Application Scenario
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Product Categories
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Why Choose Us
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
About US
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Transportation
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
FAQ
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Q1: Can you send me the catalogue? A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need. Q2: Do you accept OEM? A2: We can produce any of your requested designs. Q3: Can it be configured with something else? A3: Yes, We can customize the machine according to your product requirements Q4: Are you a factory? A4: Sure. We are factory direct sales; welcome to visit our factory. Q5: What information will be helpful in getting an accurate quotation from us? A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc Q6: What is the power supply of the machine? A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement. Q7: What is the payment term? A7: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term. Q8: What is the delivery time? A8: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days. Q9: What is the guarantee period of the machine? A9: The guarantee period is one year from the date of B/L. Q10: What is the MOQ? A10: One set. We will make the machine suitable for you according to your needs Q11:How can I contact you to place an order? A11:You can contact us by email or WhatsApp, or by whatever method you prefer. Q12:What types of products are there? A12:We have camless spring machines, cam spring machines, compression spring machines, wire bending machines, rotary head machines, etc. Q13:Do you have CE certification? A13:Yes, we have CE certificate. Our machines are of good quality and high precision. Q14:What motor do you use? A14:We use Japanese Sanyo servo motors.Can also be customized according to your needs. Q15:What terms do you accept? A15:We accept FOB, CIF, EXW, etc. Q16:Do you provide training? A16:Yes, our engineers can provide machine training services, you can come to our factory to learn, or we can also arrange online guidance. Q17:Do you offer the service of purchasing accessories separately? A17:Yes, you can ask us about accessories and provide some corresponding sizes and information. Q18:What is your packaging like? A18:We use standard seaworthy wooden boxs to pack our goods. Q19:How to operate the machine? A19:Our machines are controlled by computer systems. We will provide user manuals for operating the computer systems. If you have any questions, we will also arrange for engineers to answer them. Q20:Can your computer system switch the language? A20:Yes, usually we will set the system to English mode before shipping.
